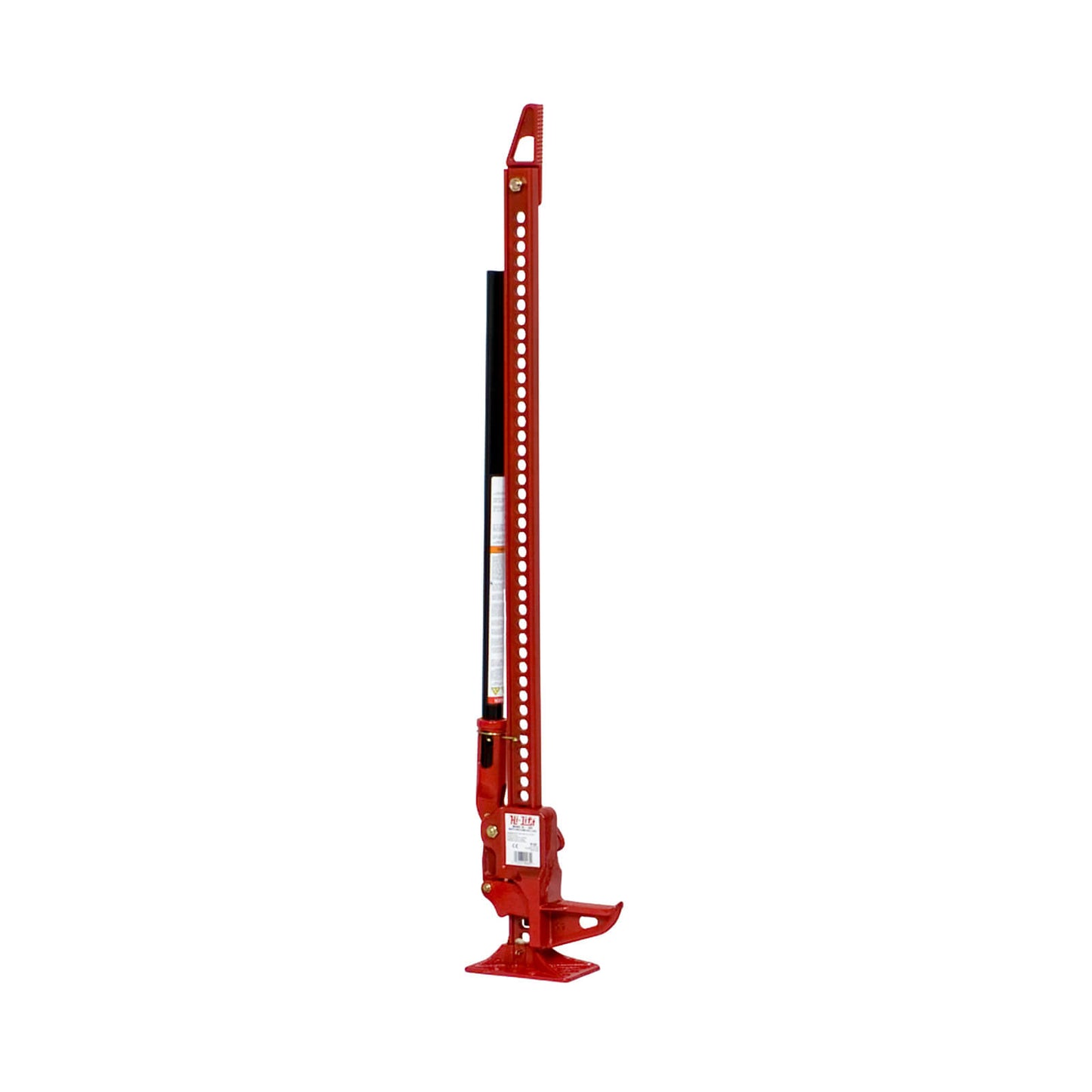

GATA HI LIFT - HL
GATA HI LIFT - HL
GATA HI LIFT HL
fabricado con fundición de hierro de alto rendimiento y resistencia a la tracción.
- Construcción totalmente fundida.
- Capacidad probada de 7000 lb (3175,14 kg).
- Capacidad nominal 4660.
- Elevadores, cabrestantes, abrazaderas y más.
- Jack rojo con mango negro.
- Diseño más duradero.
Original Hi Lift Made in USA
HL-425 |
HL-485 |
HL-605 |
|
Size |
42” (107 cm) |
48” (122 cm) |
60” (152 cm) |
Min. Lift Height |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
Max. Lift Height |
34" (86.36 cm) |
38.63" (98.12 cm) |
49.75" (126.37 cm) |
Overall Height |
46" (116.84 cm) |
50.75" (128.91 cm) |
61.75" (156.85 cm) |
Width |
5" (12.7 cm) |
5" (12.7 cm) |
5" (12.7 cm) |
Depth |
9.63" (24.46 cm) |
9.63" (24.46 cm) |
9.63" (24.46 cm) |
Rated Load (RL) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
RL on upper 12" (30.5cm) |
- |
- |
2,660 lbs (1206 kg) |
Tested Load (TL) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
TL on upper 12" (30.5cm) |
- |
- |
4,000 lbs (1,814 kg) |
Winching Capacity |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
Clamping Capacity |
750 lbs (340 kg) |
750 lbs (340 kg) |
750 lbs (340 kg) |
Weight |
27.78 lbs (12.6 kg) |
28.16 lbs (12.77 kg) |
31.31 lbs (14.2 kg) |
